2024-10-19 Stack It (Reverse Engineering)

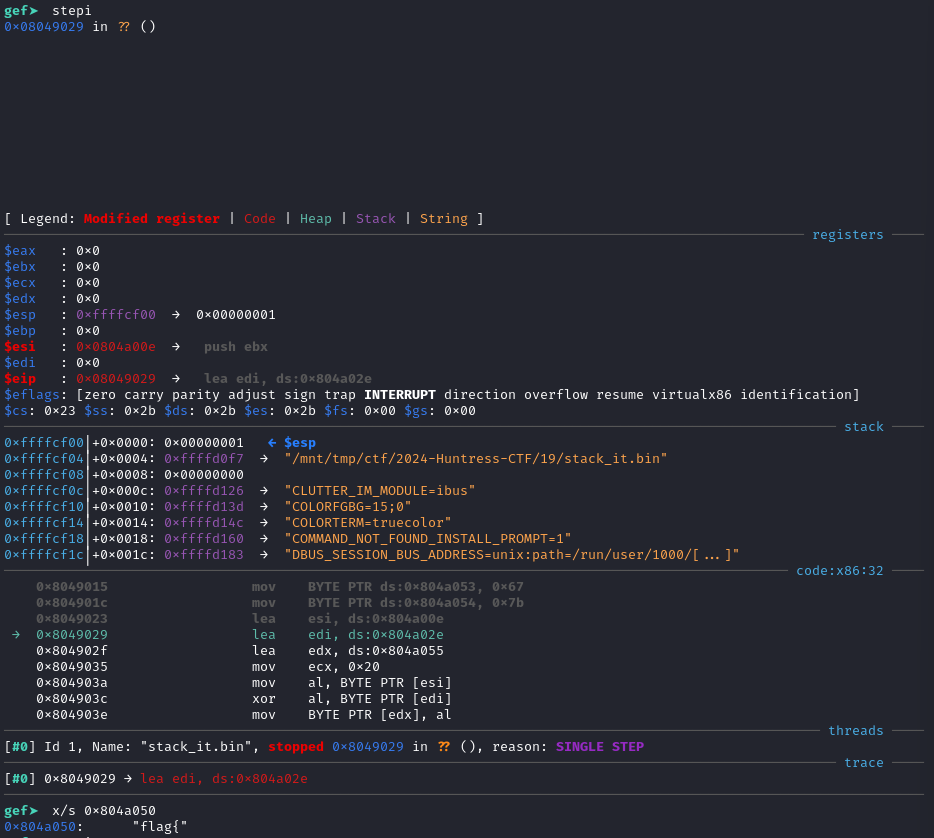

Load and run the binary in GDB.

Set a breakpoint at the entry point using b *0x8049000.

Step through the program using stepi to watch the execution.

We can see the flag{ get constructed

The program begins by constructing "flag{" and then proceeds with an XOR operation between two strings stored in esi and edi

The results of the XOR are stored starting at memory address 0x804a055.

Continue stepping through using stepi 5 to speed up the process.

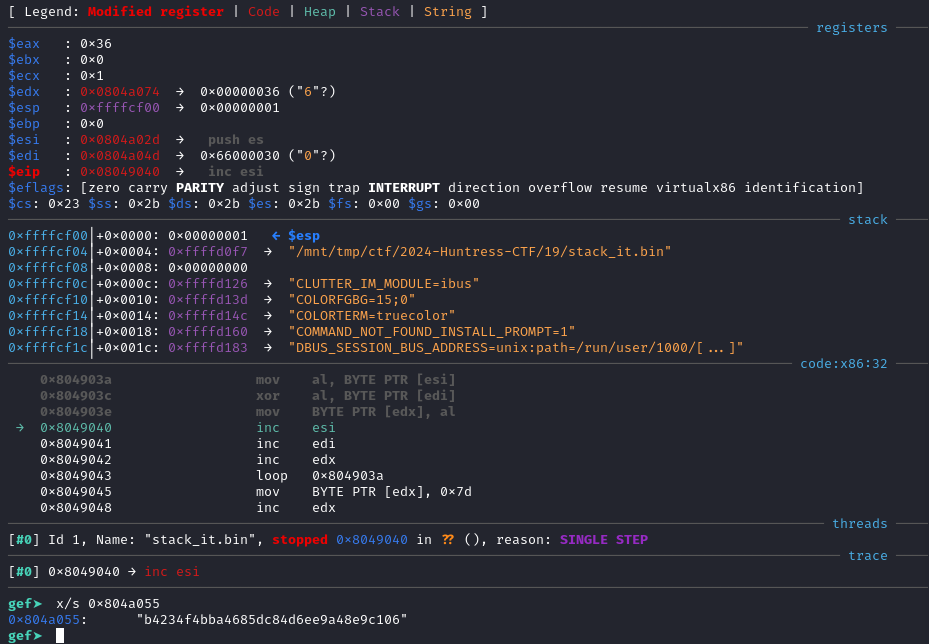

Check memory at 0x804a055 to see the flag being built by using x/s 0x804a055.

We stepped through the program this way to:

Understand the flag-building process: The binary was incrementally constructing the flag using XOR operations between values in esi and edi.

Observe the exact memory writes: By stepping through each instruction, we could watch how the program placed each XOR result into memory, allowing us to confirm the flag was being built correctly.

Ensure no missed steps: Stepping through ensured we captured every byte written, starting with "flag{" and completing the flag with the XORed results.

Reveal hidden computations: The XOR operation was crucial, and stepping through allowed us to observe how it manipulated the data to generate the full flag.

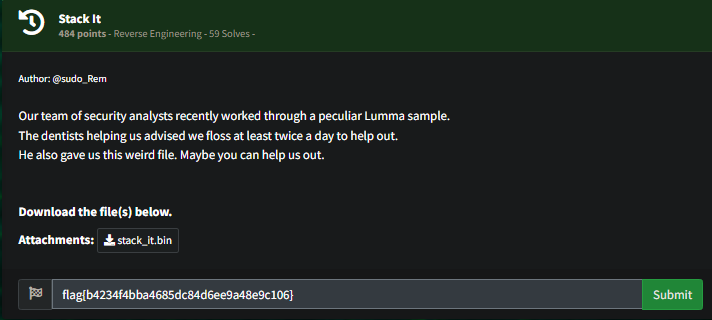

flag{b4234f4bba4685dc84d6ee9a48e9c106}
